Chapter 3: Agile Software Development

OBJECTIVES:

The objective of this chapter is to introduce you to agile software development methods. When you have read the chapter, you will:

1. 1 Learn the purpose and principles of agile development.


2. 2 Understand key practices in Extreme Programming.


3. 3 Explore the Scrum approach to project management.


4. 4 Recognize challenges in scaling agile methods for large systems.

INTRODUCTION

Businesses today face a fast-changing, global environment that demands rapid software development to seize opportunities and stay competitive. Because requirements often change unpredictably, traditional plan-driven models like the waterfall approach are too rigid, leading to delays and outdated systems. While such models may still suit safety-critical systems, business software needs flexible, rapid development processes that adapt to evolving requirements.

This need led to incremental development in the 1980s and gained momentum in the late 1990s with the rise of agile methodologies such as DSDM, Scrum, and Extreme Programming.

Rapid software development processes are designed to produce useful software quickly. The software is not developed as a single unit but as a series of increments,with each increment including new system functionality. Although there are many approaches to rapid software development, they share some fundamental characteristics:

1. The processes of specification, design, and implementation are interleaved. There is no detailed system specification, and design documentationis mini mized or generated automatically by the programming environment used to implement the system. The user requirements document only defines the most important characteristics of the system.


2. The system is developed in a series of versions. End-users and other system stakeholders are involved in specifying and evaluating each version. They may propose changes to the software and new requirements that should be imple mented in a later version of the system.


3. System user interfaces are often developed using an interactive development system that allows the interface design to be quickly created by drawing and placing icons on the interface. The system may then generate a web-based interface for a browser or an interface for a specific platform such as Microsoft Windows.



Agile methods are incremental development methods in which the increments are small and, typically, new releases of the system are created and made available to cus tomers every two or three weeks. They involve customers in the development process to get rapid feedback on changing requirements. They minimize documentation by using informal communications rather than formal meetings with written documents.

3.1 AGILE METHODS

In the 1980s and early 1990s, software engineering emphasized plan-driven, heavyweight methods involving detailed planning, documentation,quality assurance, and formal design tools, which suited large, long-lived, safety-critical systems like aerospace and government projects.

These projects required coordination among large, distributed teams and justified the overhead of rigorous processes. However, when applied to smaller business systems, the bureaucracy became excessive, with more effort spent on planning and documentation than coding and testing.

This inefficiency, coupled with the need to adapt to rapidly changing requirements, led to the rise of agile methods in the 1990s. Agile approaches shifted focus to incremental development, quick delivery of working software, customer feedback, and minimal documentation, making them more effective for dynamic application development.

The philosophy behind agile methods is reflected in the agile manifesto that was agreed on by many of the leading developers of these methods.

This manifesto states:

We are uncovering better ways of developing software by doing it and helping others do it.
Through this work we have come to value:

Individuals and interactions over processes and tools

Working software over comprehensive documentation

Customer collaboration over contract negotiation

Responding to change over following a plan

That is, while there is value in the items on the right, we value the items on the left more.

Probably the best-known agile method is extreme programming (Beck, 1999; Beck, 2000), which I describe later in this chapter. Other agileapproaches include Scrum (Cohn, 2009; Schwaber, 2004; Schwaber and Beedle, 2001), Crystal (Cockburn, 2001; Cockburn, 2004), Adaptive Software Development (Highsmith, 2000), DSDM (Stapleton, 1997; Stapleton, 2003), and Feature Driven Development (Palmer and Felsing, 2002). The success of these methods has led to some integration with more traditional development methods based on system modelling, resulting in the notion of agile modelling (Ambler and Jeffries, 2002) and agile instantiations of the Rational Unified Process (Larman, 2002).

Although these agile methods are all based around the notion of incremental devel opment and delivery, they propose different processes to achieve this. However, they share a set of principles, based on the agile manifesto, and so have much in common. These principles are shown in Figure 3.1. Different agile methods instantiate these prin ciples in different ways and I don’t have space to discuss all agile methods. Instead,
I focus on two of the most widely used methods: extreme programming (Section 3.3) and Scrum (Section 3.4).

Agile methods have been very successful for some types of system development:

1. Product development where a software company is developing a small or medium-sized product for sale.


2. Custom system development within an organization, where there is a clear com mitment from the customer to become involved in the
   development process and where there are not a lot of external rules and regulations that affect the software.



FIGURE 3.1 THE PRINCIPLES OF AGILE METHODS

As I discuss in the final section of this chapter, the success of agile methods has meant that there is a lot of interest in using these methods for other types of software development. However, because of their focus on small, tightly integrated teams, there are problems in scaling them to large systems. There have also been experi ments in using agile approaches for critical systems engineering (Drobna et al., 2004). However, because of the need for security, safety, and dependability analysis in critical systems, agile methods require significant modification before they can be routinely used for critical systems engineering.

In practice, the principles underlying agile methods are sometimes difficult to realize:

1. Although the idea of customer involvement in the development process is an attractive one, its success depends on having a customer who is willing and able to spend time with the development team and who can represent all system stakeholders. Frequently, the customer representatives are subject to other pres sures and cannot take full part in the software development.


2. Individual team members may not have suitable personalities for the intense involvement that is typical of agile methods, and therefore not interact well with other team members.


3. Prioritizing changes can be extremely difficult, especially in systems for which there are many stakeholders. Typically, each stakeholder gives different priori ties to different changes.


4. Maintaining simplicity requires extra work. Under pressure from delivery schedules, the team members may not have time to carry out desirable system simplifications.


5. Many organizations, especially large companies, have spent years changing their culture so that processes are defined and followed. It is difficult for them to move to a working model in which processes are informal and defined by devel opment teams.



A key non-technical challenge with agile, incremental development arises when software is built by an external supplier. Traditionally, contracts are based on a fixed set of requirements, but agile’s evolving specifications make this difficult. Instead, contracts usually pay for developmen t time and effort, not for delivering predefined features. While this can benefit both parties if progress is smooth, disputes may arise if problems occur, leading to disagreements over responsibility and costs. Additionally, most agile literature focuses on new system development, while its use in software maintenance and evolution is less documented, despite maintenance being a major part of software engineering.

There are two questions that should be considered when considering agile methods and maintenance:

1. Are systems that are developed using an agile approach maintainable, given the emphasis in the development process of minimizing formal documentation?
2. Can agile methods be used effectively for evolving a system in response to customer change requests?

Agile methods often minimize formal documentation, arguing it quickly becomes outdated and unreliable. Instead, they emphasize clean, well-structured, and continually improved code as the basis for maintainability. However, the requirements document remains critical for system maintenance, as it explains what the system is meant to do and helps assess the impact of changes. Since many agile methods capture requirements informally and incrementally, they may lack a coherent, long-term record of requirements, which can pose challenges during system evolution.

Agile methods can make future system maintenance harder if requirements are poorly documented. However, applying agile practices during maintenance—such as incremental delivery, designing for change, and keeping systems simple—can be highly effective. In this sense, agile development itself can be seen as a form of continuous software evolution.

After delivery, maintaining customer involvement becomes difficult, since customers are less likely to dedicate time to ongoing maintenance. Mechanisms like formal change proposals may be needed to capture new requirements. Another challenge is team continuity: agile relies heavily on shared, undocumented knowledge, so breaking up the team can result in significant knowledge loss.

While advocates often promote agile enthusiastically and critics sometimes overstate its flaws, balanced views suggest that a hybrid approach—combining agile practices with selected plan-driven techniques—may offer the most effective path forward.

3.2 PLAN-DRIVEN AND AGILE DEVELOPMENT

Agile approaches to software development consider design and implementation to be the central activities in the software process. They incorporate other activities, such as requirements elicitation and testing, into design and implementation. By contrast, a plan-driven approach to software engineering identifies separate stages in the soft ware process with outputs associated with each stage. The outputs from one stage are used as a basis for planning the following process activity. Figure 3.2 shows the dis tinctions between plan-driven and agile approaches to system specification.

In a plan-driven approach, iteration occurs within activities with formal docu ments used to communicate between stages of the process. For example, the require ments will evolve and, ultimately, a requirements specification will be produced. This is then an input to the design and implementation process. In an agile approach, iteration occurs across activities. Therefore, the requirements and the design are developed together, rather than separately.

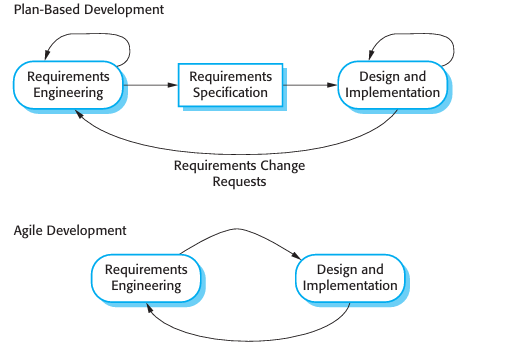

FIGURE 3.2 PLAN-DRIVEN AND AGILE SPECIFICATION

A plan-driven software process can support incremental development and delivery. It is perfectly feasible to allocate requirements and plan the design and development phase as a series of increments. An agile process is not inevitably code-focused and it may produce some design documentation. As I discuss in the following section, the agile development team may decide to include a documentation ‘spike’, where, instead of producing a new version of a system, the team produce system documentation.

In fact, most software projects include practices from plan-driven and agile approaches. To decide on the balance between a plan-based and an agile approach, you have to answer a range of technical, human, and organizational questions:

1. Is it important to have a very detailed specification and design before moving to implementation? If so, you probably need to use a plan-driven approach.


2. Is an incremental delivery strategy, where you deliver the software to customers and get rapid feedback from them, realistic? If so, consider using agile methods.


3. How large is the system that is being developed? Agile methods are most effec tive when the system can be developed with a small co-located team who can communicate informally. This may not be possible for large systems that require larger development teams so a plan-driven approach may have to be used.


4. What type of system is being developed? Systems that require a lot of analysis before implementation (e.g., real-time system with complex timing require ments) usually need a fairly detailed design to carry out this analysis. A plan driven approach may be best in those circumstances.


5. What is the expected system lifetime? Long-lifetime systems may require more design documentation to communicate the original intentions of the system developers to the support team. However, supporters of agile methods rightly argue that documentation is frequently not kept up to date and it is not of much use for long-term system maintenance.


What technologies are available to support system development? Agile methods often rely on good tools to keep track of an evolving design. If you are develop ing a system using an IDE that does not have good tools for program visualiza tion and analysis, then more design documentation may be required.


7. How is the development team organized? If the development team is distributed or if part of the development is being outsourced, then you may need to develop design documents to communicate across the development teams. You may need to plan in advance what these are.


8. Are there cultural issues that may affect the system development? Traditional engineering organizations have a culture of plan-based development, as this is the norm in engineering. This usually requires extensive design documentation, rather than the informal knowledge used in agile processes.


9. How good are the designers and programmers in the development team? It is sometimes argued that agile methods require higher skill levels than plan-based approaches in which programmers simply translate a detailed design into code. If you have a team with relatively low skill levels, you may need to use the best people to develop the design, with others responsible for programming.


10. Is the system subject to external regulation? If a system has to be approved by an external regulator (e.g., the Federal Aviation Authority [FAA] approve software that is critical to the operation of an aircraft) then you will probably be required to produce detailed documentation as part of the system safety case.



In reality, the issue of whether a project can be labelled as plan-driven or agile is not very important. Ultimately, the primary concern of buyers of a software system is whether or not they have an executable software system that meets their needs and does useful things for the individual user or the organization. In practice, many com panies who claim to have used agile methods have adopted some agile practices and have integrated these with their plan-driven processes.

Extreme programming (XP) is perhaps the best known and most widely used of the agile methods. The name was coined by Beck (2000) because the approach was developed by pushing recognized good practice, such as iterative development, to ‘extreme’ levels. For example, in XP, several new versions of a system may be devel oped by different programmers, integrated and tested in a day.

FIGURE 3.3 THE EXTREME PROGRAMMING CYCLE

In extreme programming, requirements are expressed as scenarios (called user stories), which are implemented directly as a series of tasks. Programmers work in pairs and develop tests for each task before writing the code. All tests must be suc cessfully executed when new code is integrated into the system. There is a short time gap between releases of the system. Figure 3.3 illustrates the XP process to produce an increment of the system that is being developed.

Extreme programming involves a number of practices, summarized in Figure 3.4, which reflect the principles of agile methods:

1. Incremental development is supported through small, frequent releases of the system. Requirements are based on simple customer stories or scenarios that are used as a basis for deciding what functionality should be included in a system increment.


2. Customer involvement is supported through the continuous engagement of the customer in the development team. The customer representative takes part in the development and is responsible for defining acceptance tests for the system.


3. People, not process, are supported through pair programming, collective owner ship of the system code, and a sustainable development process that does not involve excessively long working hours.


4. Change is embraced through regular system releases to customers, test-first development, refactoring to avoid code degeneration, and continuous integra tion of new functionality.


5. Maintaining simplicity is supported by constant refactoring that improves code quality and by using simple designs that do not unnecessarily anticipate future changes to the system.



In an XP process, customers are intimately involved in specifying and prioritizing system requirements. The requirements are not specified as lists of required system functions. Rather, the system customer is part of the development team and discusses scenarios with other team members. Together, they develop a ‘story card’ that encap sulates the customer needs. The development team then aims to implement that sce nario in a future release of the software. An example of a story card for the mental

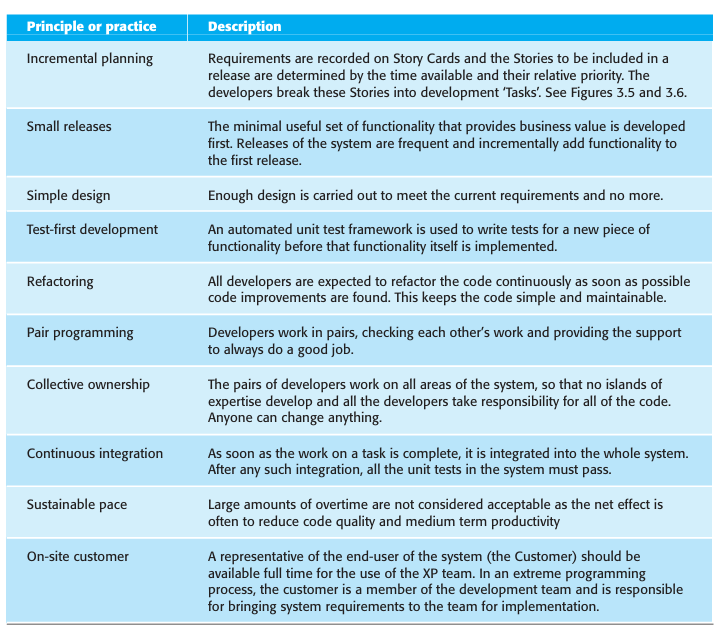

FIGURE 3.4 EXTREME PROGRAMMING PRACTICES

health care patient management system is shown in Figure 3.5. This is a short description of a scenario for prescribing medication for a patient.

The story cards are the main inputs to the XP planning process or the ‘planning game’. Once the story cards have been developed, the development team breaks these down into tasks (Figure 3.6) and estimates the effort and resources required for imple menting each task. This usually involves discussions with the customer to refine the requirements. The customer then prioritizes the stories for implementation, choosing those stories that can be used immediately to deliver useful business support. The intention is to identify useful functionality that can be implemented in about two weeks, when the next release of the system is made available to the customer.

Of course, as requirements change, the unimplemented stories change or may be discarded. If changes are required for a system that has already been delivered, new story cards are developed and again, the customer decides whether these changes should have priority over new functionality.

FIGURE 3.5 A ‘PRESCRIBING MEDICATION’STORY.

Sometimes, during the planning game, questions that cannot be easily answered come to light and additional work is required to explore possible solutions. The team may carry out some prototyping or trial development to understand the problem and solution. In XP terms, this is a ‘spike’, an increment where no programming is done. There may also be ‘spikes’ to design the system architecture or to develop system documentation.

Extreme programming takes an ‘extreme’ approach to incremental development. New versions of the software may be built several times per day and releases are delivered to customers roughly every two weeks. Release deadlines are never slipped; if there are development problems, the customer is consulted and function ality is removed from the planned release.

When a programmer builds the system to create a new version, he or she must run all existing automated tests as well as the tests for the new functionality. The new build of the software is accepted only if all tests execute successfully. This then becomes the basis for the next iteration of the system.

A fundamental precept of traditional software engineering is that you should design for change. That is, you should anticipate future changes to the software and design it so that these changes can be easily implemented.

Extreme programming, however, has discarded this principle on the basis that designing for change is often wasted effort. It isn’t worth taking time to add generality to a program to cope with change.

The changes anticipated often never materialize and completely different change requests may actually be made. Therefore, the XP approach accepts that changes will happen and reorganize the software when these changes actually occur.

FIGURE 3.6 EXAMPLE OF TASK CARDS FOR PRESCRIBING MEDICATION.

A general problem with incremental development is that it tends to degrade the software structure, so changes to the software become harder and harder to imple ment. Essentially, the development proceeds by finding workarounds to problems, with the result that code is often duplicated, parts of the software are reused in inap propriate ways, and the overall structure degrades as code is added to the system.

Extreme programming tackles this problem by suggesting that the software should be constantly refactored. This means that the programming team look for possible improvements to the software and implement them immediately. When a team member sees code that can be improved, they make these improvements even in situations where there is no immediate need for them. Examples of refactoring include the reorganization of a class hierarchy to remove duplicate code, the tidy ing up and renaming of attributes and methods, and the replacement of code with calls to methods defined in a program library. Program development environments, such as Eclipse (Carlson, 2005), include tools for refactoring which simplify the process of finding dependencies between code sections and making global code modifications.

In principle then, the software should always be easy to understand and change as new stories are implemented. In practice, this is not always the case. Sometimes development pressure means that refactoring is delayed because the time is devoted to the implementation of new functionality. Some new features and changes cannot readily be accommodated by code-level refactoring and require the architecture of the system to be modified.

In practice, many companies that have adopted XP do not use all of the extreme programming practices listed in Figure 3.4. They pick and choose according to their local ways of working. For example, some companies find pair programming help ful; others prefer to use individual programming and reviews. To accommodate dif ferent levels of skill, some programmers don’t do refactoring in parts of the system they did not develop, and conventional requirements may be used rather than user stories. However, most companies who have adopted an XP variant use small releases, test-first development, and continuous integration.

3.3.1 TESTING IN XP

As I discussed in the introduction to this chapter, one of the important differences between incremental development and plan-driven development is in the way that the system is tested. With incremental development, there is no system specification that can be used by an external testing team to develop system tests. As a conse quence, some approaches to incremental development have a very informal testing process, in comparison with plan-driven testing.

To avoid some of the problems of testing and system validation, XP emphasizes the importance of program testing. XP includes an approach to testing that reduces the chances of introducing undiscovered errors into the current version of the system.

The key features of testing in XP are:

1. Test-first development
2. incremental test development from scenarios,
3. user involvement in the test development and validation, and
4. the use of automated testing frameworks.

Test-first development is one of the most important innovations in XP. Instead of writing some code and then writing tests for that code, you write the tests before you write the code. This means that you can run the test as the code is being written and discover problems during development.

Writing tests implicitly defines both an interface and a specification of behavior for the functionality being developed. Problems of requirements and interface misun derstandings are reduced. This approach can be adopted in any process in which there is a clear relationship between a system requirement and the code implementing that requirement. In XP, you can always see this link because the story cards representing the requirements are broken down into tasks and the tasks are the principal unit of implementation. The adoption of test-first development in XP has led to more general test-driven approaches to development (Astels, 2003). I discuss these in Chapter 8. In test-first development, the task implementers have to thoroughly understand the specification so that they can write tests for the system. This means that ambigu ities and omissions in the specification have to be clarified before implementation begins. Furthermore, it also avoids the problem of ‘test-lag’. This may happen when the developer of the system works at a faster pace than the tester. The implementa tion gets further and further ahead of the testing and there is a tendency to skip tests, so that the development schedule can be maintained.

User requirements in XP are expressed as scenarios or stories and the user priori tizes these for development. The development team assesses each scenario and breaks it down into tasks. For example, some of the task cards developed from the story card for prescribing medication (Figure 3.5) are shown in Figure 3.6. Each task generates one or more unit tests that check the implementation described in that task. Figure 3.7 is a shortened description of a test case that has been developed to check that the prescribed dose of a drug does not fall outside known safe limits.

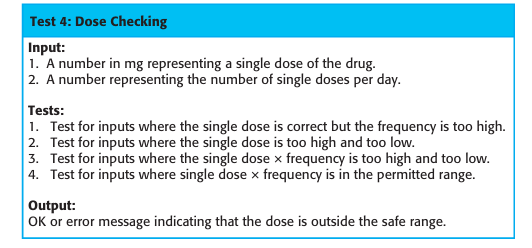

FIGURE 3.7 TEST CASE DESCRIPTION FOR DOSE CHECKING

The role of the customer in the testing process is to help develop acceptance tests for the stories that are to be implemented in the next release of the system. As I dis cuss in Chapter 8, acceptance testing is the process where the system is tested using customer data to check that it meets the customer’s real needs.

Test-first development and automated testing usually results in a large number of tests being written and executed. However, this approach does not necessarily lead to thorough program testing. There are three reasons for this:

1. Programmers prefer programming to testing and sometimes they take shortcuts when writing tests. For example, they may write incomplete tests that do not check for all possible exceptions that may occur.


2. Some tests can be very difficult to write incrementally. For example, in a com plex user interface, it is often difficult to write unit tests for the code that imple ments the ‘display logic’ and workflow between screens.


3. It difficult to judge the completeness of a set of tests. Although you may have a lot of system tests, your test set may not provide complete coverage. Crucial parts of the system may not be executed and so remain untested.



Therefore, although a large set of frequently executed tests may give the impres sion that the system is complete and correct, this may not be the case. If the tests are not reviewed and further tests written after development, then undetected bugs may be delivered in the system release.

3.3.2 PAIR PROGRAMMING

The use of pair programming has a number of advantages:

1. It supports the idea of collective ownership and responsibility for the system. This reflects Weinberg’s (1971) idea of egoless programming where the soft ware is owned by the team as a whole and individuals are not held responsible for problems with the code. Instead, the team has collective responsibility for resolving these problems.


2. It acts as an informal review process because each line of code is looked at by at least two people. Code inspections and reviews (covered in Chapter 24) are very successful in discovering a high percentage of software errors. However, they are time consuming to organize and, typically, introduce delays into the devel opment process. Although pair programming is a less formal process that prob ably doesn’t find as many errors as code inspections, it is a much cheaper inspection process than formal program inspections.


3. It helps support refactoring, which is a process of software improvement. The diffi culty of implementing this in a normal development environment is that effort in refactoring is expended for long-term benefit. An individual who practices refac toring may be judged to be less efficient than one who simply carries on developing code. Where pair programming and collective ownership are used, others benefit immediately from the refactoring so they are likely to support the process.

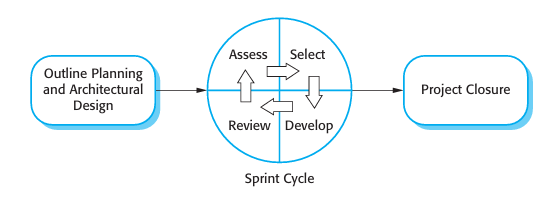

3.4 AGILE PROJECT MANAGEMENT

This is then followed by a series of Sprint cycles, where each cycle focuses on developing a functional increment of the system, gradually enhancing the overall product through continuous design, coding, testing, and feedback. During each Sprint, the team collaborates closely to ensure that the delivered increment meets user requirements and aligns with the project’s objectives. Once all planned Sprints are completed, the process transitions to the project closure phase, which involves wrapping up all remaining activities, finalizing deliverables, and ensuring that the system is fully documented.

This includes preparing comprehensive user manuals, system help guides, and other supporting materials to assist end-users and maintainers.

Additionally, the team conducts a final evaluation to assess project outcomes, review performance, and identify key lessons learned, which can be applied to improve future projects and development practices.

3.5 SCALING AGILE METHODS

Agile methods were developed for use by small programming teams who could work together in the same room and communicate informally. Agile methods have therefore been mostly used for the development of small and medium-sized systems. Of course, the need for faster delivery of software, which is more suited to customer needs, also applies to larger systems. Consequently, there has been a great deal of interest in scaling agile methods to cope with larger systems, developed by large organizations.

Denning et al. (2008) argue that the only way to avoid common software engineer ing problems, such as systems that don’t meet customer needs and budget overruns, is to find ways of making agile methods work for large systems. Leffingwell (2007) dis cusses which agile practices scale to large systems development. Moore and Spens (2008) report on their experience of using an agile approach to develop a large med ical system with 300 developers working in geographically distributed teams.

Large software system development is different from small system development in a number of ways:

1. Large systems are usually collections of separate, communicating systems, where separate teams develop each system. Frequently, these teams are working in different places, sometimes in different time zones. It is practically impossi ble for each team to have a view of the whole system. Consequently, their prior ities are usually to complete their part of the system without regard for wider systems issues.


2. Large systems are ‘brownfield systems’ (Hopkins and Jenkins, 2008); that is they include and interact with a number of existing systems. Many of the system requirements are concerned with this interaction and so don’t really lend them selves to flexibility and incremental development. Political issues can also be significant here—often the easiest solution to a problem is to change an existing system. However, this requires negotiation with the managers of that system to convince them that the changes can be implemented without risk to the system’s operation.


3. Where several systems are integrated to create a system, a significant fraction of the development is concerned with system configuration rather than original code development. This is not necessarily compatible with incremental develop ment and frequent system integration


4. Large systems and their development processes are often constrained by exter nal rules and regulations limiting the way that they can be developed, that require certain types of system documentation to be produced, etc.


5. Large systems have a long procurement and development time. It is difficult to maintain coherent teams who know about the system over that period as, inevitably, people move on to other jobs and projects.


6. Large systems usually have a diverse set of stakeholders.
   For example, nurses and administrators may be the end-users of a medical system but senior medical staff, hospital managers, etc. are also stakeholders in the system. It is practically impos sible to involve all of these different stakeholders in the development process.
